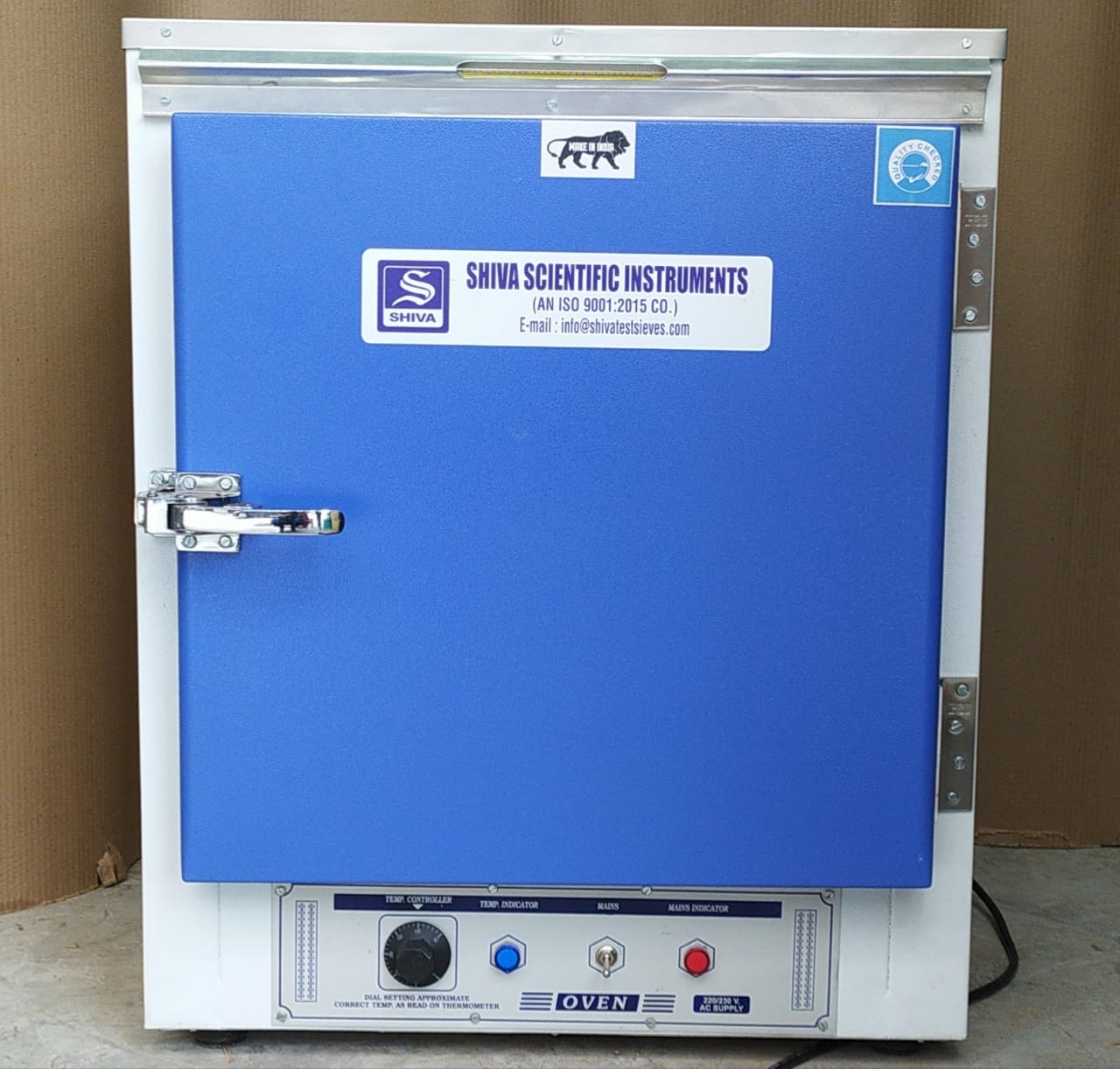

Our Thermostatically Universal Ovens are double walled and the exterior is constructed from mild steel finished in powder coated paint. These are available with various options such as air circulating fan, electronic digital indicator cum temp controller an instead of l shape thermometer.

Specifications :-

• Thermostatically Universal Oven BS:2648, 1881, 598, 1377 & 1924.
• Double walled, exterior is constructed from M.Steel finished in powder Coated Paint.
• With glass wool insulation between two walls. Inner wall made of Aluminium / Stainless Steel. Heating elements are placed in ribs of the bottom & sides for uniform heating having temp, range 5°C above ambient to 250°C .
• Air ventilator adjustable fitted on both sides provided with L shape thermometer fixed at front of the oven . temp, is controlled by thermostat with an accuracy of ±1°C fitted with main switch, pilot lamp, temp, controlling knob and supplied with perforated shelves and working on 220V 1 phase 50Hz A.C.

Inner Chamber Sizes :-
W x H x D

• 305 x 305 x 305mm
• 355 x 355 x 355 mm
• 455 x 455 x 455 mm
• 455 x 605 x 455 mm
• 605 x 605 x 605 mm
• 605 x 905 x 605 mm
• 905 x 905 x 905 mm

Optional :-

• Air Circulating Fan
• Electronic Digital Indicator cum temp Controller
• Instead of L Shape Thermometer.
• NOTE: Any other size available on request.

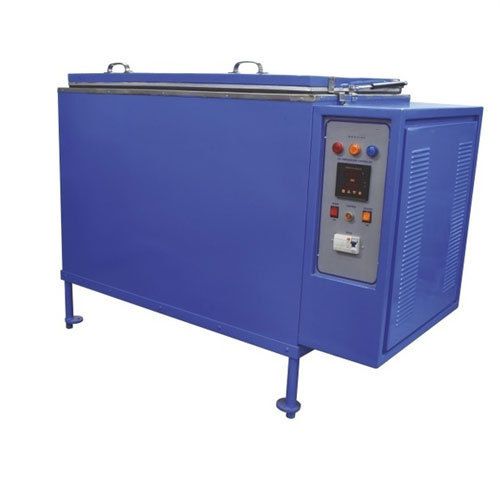

Our quality range of Curing Tank is catering to the requirements of diverse applications in defense, automobile, research and development activities and construction industries. These are available in various sizes as per the clients’ specific requirements.
Specifications:

• Accelerated Curing Tank
  The Tank has been designed to accommodate 150 mm/70.6 mm cube Moulds & fully insulated, complete with hinged lid, heater, Digital temperature Controller & Circulated Pump.
  Provision of two removable racks allowing free circulation of water around each Mould. The pump, drain valves and electrical equipment are housed in a compartment located at one end of the tank.
  The tank is heated by immersion heater under normal conditions the Temperature is controlled at 35deg.C or 100 deg.C. +-2deg. These Tanks are available in various sizes. Curing Tanks are also available with cooling arrangement.

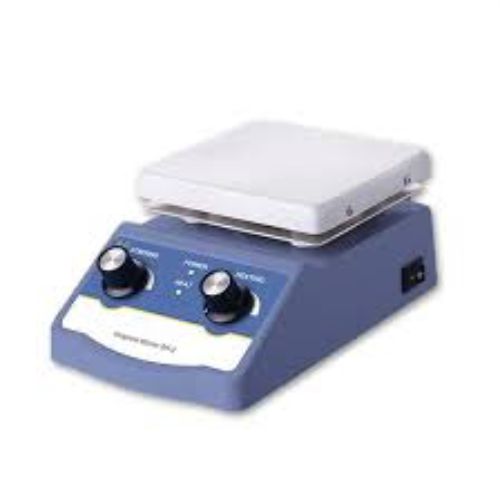

With our immense domain expertise in the industry, we have been able to offer a wide range of Hot Plate with rectangular top 250 mm x 300 mm fitted with digital controller-cum-indicator. The column displacement for single and double stage pumps respectively is fitted with vacuum gauge with regulator, moisture trap, belt guard cord and plug, To work on 220 V. A.C. 251ts. /min. & 50 Lts. /min.

Multitudes of Bath for Varities of application expectation Small to large capacity Bath, heater element top cover & other wanted Parts with 304 grade S. Steel for years of life & easy of daily clean.
S. Steel perforated 304 grade diffuser plate
Drain Plug made of brass duly Nickled on the back of the bath.
Full feature with Digital Temp. Controller / Indicator & Microprocessor Based PID Temp. Controller Cum Indicator (On Customer request)
Stability 0.5°C or better
Better mineral / glasswoov insulation to keep the surface comfortable to work
Best quality Bi-Metallic capillary Thermostat to give accurate result

It consists of water bath made of M. steel. Having the illuminator at rear side. The temperature is controlled by electric relay. It is supplied with one no. of mercury type thermometer and manometer stand.
It is available in three different options for temp. range such as ambient to 100ºC, 5°C TO 100 °C and ambient to 150 ºC
Note: Bath can be fitted with P.I. D. controller extra cost.

Following bath size is available.

• Size (L x W x H )
  a) 12" x 9" x 12" (To accommodate 4 viscometers)
  b) 12" x 12" x 12" (To accommodate 6 viscometers)
  c) 18" x 12" x 12" (To accommodate 8 viscometers)
